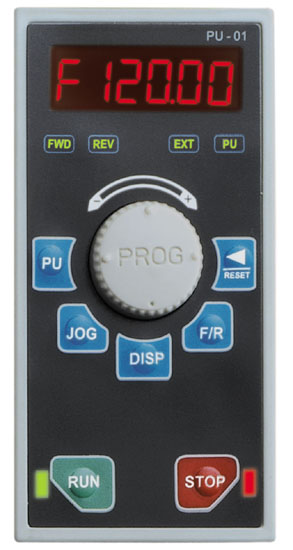

Description |
| Display |
Main display: A 6 digits 7 segment 0.36" LED display |
Display the Setting frequency, actual operation frequency, Output current/Voltage, User defined unit...etc. |
| Status indicator: 6 LED indicator |
Display the Drive run/stop status, Forward/Reverse run status, Keypad enable, and Frequency command source. |
| Keys |
8 function keys: RUN, STOP, LEFT/RESET, F/R, DISP, JOG, PU & PROG |
Access R un, Stop, Reset/ Digit Shift, Forward/ Reverse run, Display mode, Keypad Enable, Jog operation, and Read/Write Programming data. |
| Dial Knob |
A 360 degree Rotary Encoder |
Sets the parameter number and changes the numerical data |
|
|
|
|
| |
|
|
|
